Adjustment mechanism
Durable mechanisms for precise and smooth vehicle adjustments.
Adjustment mechanism FR81019827
Durable mechanism for precise caliper adjustment and consistent brake performance.
- Material:
- High-strength alloy steel
- Adjustment Range:
- 0–12 mm
- Operating Temperature:
- −40°C to +120°C
Adjustment mechanism FR81019819
Helping maintain consistent braking force and reduced wear
- Thread Type:
- Precision-cut M12 × 1.5
- Corrosion Protection:
- Zinc-plated
- Compatibility:
- For most heavy-duty disc brake
Adjustment mechanism FR81029776
Built for heavy-duty performance, it ensures reliable operation even under high load and continuous use.
- Load Capacity:
- High-torque adjustment forces up to 120 Nm
- Seal Protection:
- Equipped with dust-resistant sealing
- Finish:
- Heat-treated components for increased strength and reduced wear during repetitive adjustments
Brake Components
Reliable braking solutions for maximum safety

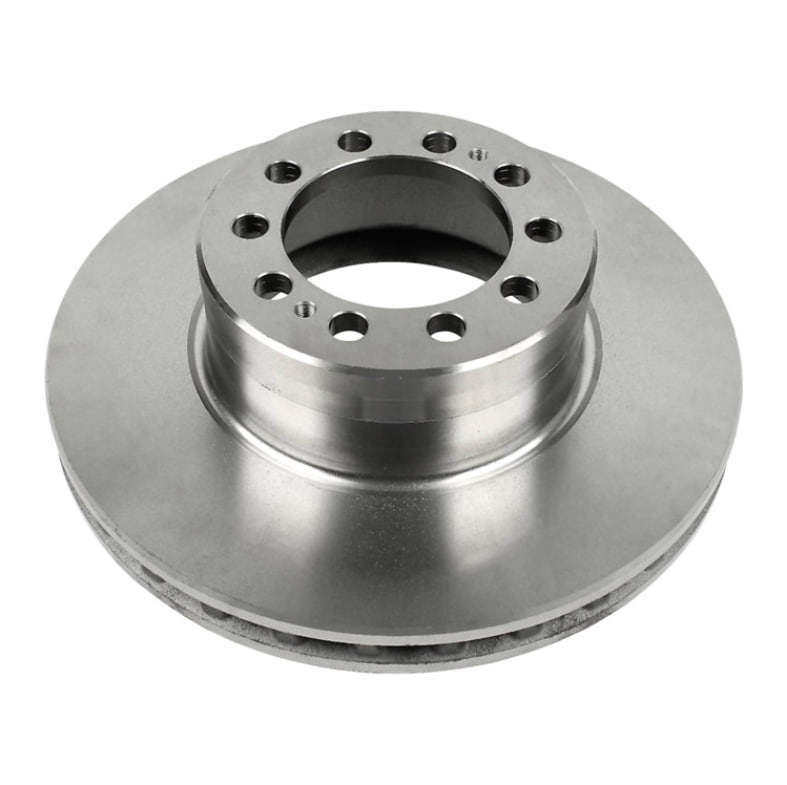

Ventilated Brake Disc
High-carbon content for superior heat dissipation and consistent braking performance.
- Diameter:
- 430mm
- Thickness:
- 45mm
- Holes:
- 10 mounting holes
Heavy Duty Brake Pads
Premium friction material providing excellent stopping power and minimal dust.
- Material:
- Ceramic composite
- Thickness:
- 29mm
- Temperature Range:
- -40°C to +650°C
Brake Caliper Assembly
Complete caliper unit with precision-machined components for reliable operation.
- Type:
- Sliding caliper
- Piston Size:
- 57mm
- Finish:
- Anti-corrosion coating
Air System Components
Essential pneumatic parts for truck air systems

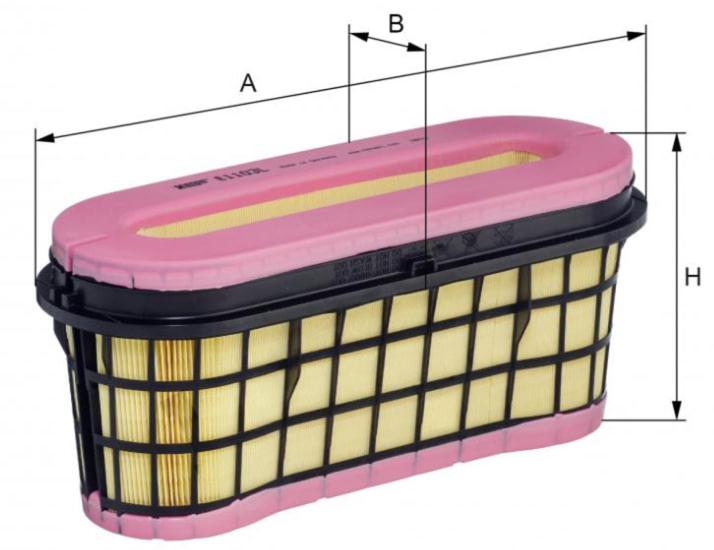

Heavy Duty Air Filter
Removes dust and debris from engine air intake with high-efficiency filtration.
- Service Life:
- 30,000 km
- Filtration Efficiency:
- 99.9%
- Compatible Vehicles:
- Volvo FH/FM, Scania P/G/R
Emergency Air Connector
Quick-connect coupling for emergency brake and air system line connections.
- Max Pressure:
- 125 PSI
- Length:
- 15 inches
- Material:
- Reinforced rubber
Spiral Air Hose
Flexible, coiled polyurethane hose that retracts to save space in tight applications.
- Inner Diameter:
- 8mm
- Working Pressure:
- 12 bar (174 PSI)
- Length (Extended):
- 10 meters
